With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

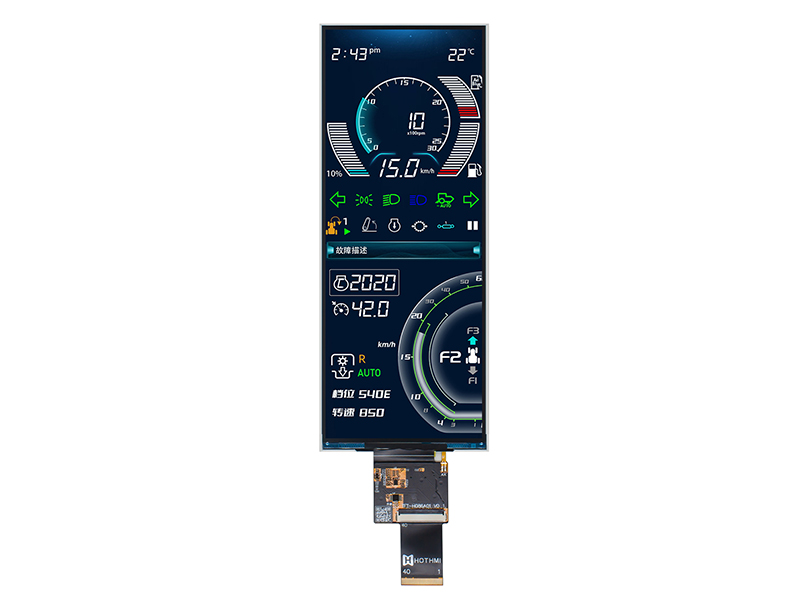

| 7.8” TFT LCD Display-400x1280 Capacitive Touch Screen with MIPI DSI Interface TFT-H078B06ZAISTTC40 | TFT | 59.4x190.08 |
|
67.8x205.78x6.4 | 7.8 | 7.8 | 59.4x190.08 | IPS | 1500cd/m2 | FPC-40 pin | MIPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7703 | |
| 7.8 inch TFT Display | 1024x600 MIPI DSI Screen | ST7703 TFT-H078A1ZAIST7N40 | TFT | ST7703 |
|
65.2x201.18x3.3 | 7.8 | 7.8 | 59.4x190.08 | 59.4x190.08 | 40pin | MIPI | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7703 | ||
| 7.0 inch TFT Display Module | 1024x600 RGB IPS LCD Screen | EK79001 TFT-H070A2WSIFT8N50 | TFT Display | 1024x600 |
|
164.9x100.0x5.5 | 7.0 | 7.0 | 154.21x85.92 | 154.21x85.92 | 50pin | RGB | IPS | 800cd/m2 | RGB | EK79001+EK73215 | ||
| 4.0 inch TFT LCD Display | 480x800 RGB Screen with ST7701S Controller TFT-H040A19WVIST5N40 | TFT | 480x800 |
|
57.14x96.85x2.0 | 4.0 | 4.0 | 51.84x86.4 | IPS | 51.84x86.4 | FPC-40 pin | RGB | Anti-static ESD 8KV | -30~85℃ | +3.3V | ST7701S | |
| 3.5 inch TFT LCD Display | 640x480 LVDS Screen TFT-H035A26 VGIST4N30 | TFT | 640x480 |
|
76.9x63.9x3.1 | 3.5 | 3.5 | 70.08x52.56 | IPS | 450cd/m2 | 30PIN | LVDS | Anti-static ESD 8KV | -30~80℃ | +3.3V | T.B.D | |
| 1.1"TFT LCD Display | 135x240 IPS Screen | ST7789H2 Controller TFT-H011A1QCIST3N10 | TFT | 135x240 |
|
17.6x31.0x1.65 | 1.1 | 1.1 | 14.86x24.91 | IPS | 14.86x24.91 | 10 PIN | SPI | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7789H2 | |
| 7.0"TFT LCD Display | 1024x600 LVDS/MIPI Capacitive touch | Optical Optical TFT-H070A23WSIJDKC40 | TFT | 1024x600 |
|
164.9x100.0x5.29 | 7.0 | 7.0 | 154.21x85.92 | IPS | 1250cd/m2 | FPC-40 Pin | LVDS/MIPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | ||
| 3.5 inch TFT color Display | 320x480 TFT Display | ST7796 TFT-H035B30HVIST3N40 | TFT | 320x480 |
|
53.76x82.39x2.23 | 3.5 | 3.5 | 48.96x73.44 | IPS | 48.96x73.44 | FPC-40PIN | MCU | IPS | -20~70℃ | +3.3V | ST7796 | |
| 3.5 inch TFT Display Screen | 320x480 TFT resistance Display TFT-H035A31HVIIL3R40 | TFT | ILI9488 |
|
54.46x82.94x3.05 | 3.5 | 3.5 | 54.46x82.94x3.05 | IPS | 54.46x82.94x3.05 | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | -20~70℃ | ||
| 2.7" TFT LCD Display | 142x428 Bar TFT Display | NV3007 TFT-H027A02ZPINV5N10 | TFT | 142x482 |
|
24.38x69.43x2.09 | 2.7 | 2.7 | 21.28x64.14 | IPS | 500cd/m2 | FPC-10PIN | SPI | IPS | -20~80℃ | +3.3V | NV3007 |
